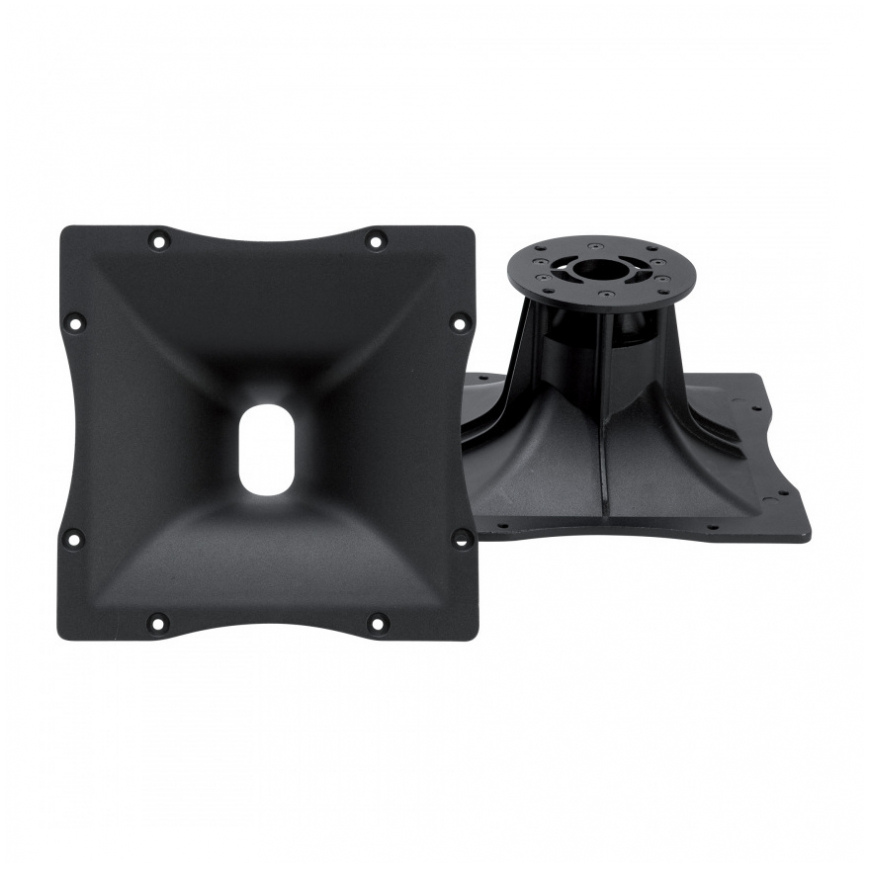

RCF HF94 1" / 1.4" Bolt On Horn Flare 90 x 40 Dispersion
1-inch/1.4 inch Throat Adaptor.90 x 40 deg Constant Directivity Coverage.Loading down to 500 Hz.
Thick Aluminium Body for best heat dissipation in conjunction to Neodymium Compression Drivers.
Perfectly Controlled Dispertion.
Main Features:
- 1-inch/1.4 inch Throat Adaptor
- 90 x 40 deg Constant Directivity Coverage
- Loading down to 500 Hz
- Thick Aluminium Body for best heat dissipation in conjunction to Neodymium Compression Drivers
- Perfectly Controlled Dispertion
| GENERAL SPECIFICATIONS | |||
| Throat Diameter: | 25.4 - 36 / 1.0 - 1.4 mm/inch | ||
| Nominal coverage angle (-6dB): | 90 x40 deg | ||
| Cut-off Frequency: | 500 Hz | ||
| Material: | Aluminium | ||
| MOUNTING INFORMATION | |
| Overall Dimensions: | 250x250 / 9.84x9.84 mm/inch |
| Baffle Cut-out Dimensions: | 200x200 / 7.87x7.87 mm/inch |
| Total Depth: | 180 / 7.08 mm/inch |
| Driver Mounting 4 x 6.5 mm holes: | 101 - 176 / 3.97 - 6.92 mm/inch |
| Net Weight : | 1.3 / 2.86 Kg/Lbs |
| Shipping Weight : | 1.5 / 3.3 Kg/Lbs |
| Other RCF products similar to RCF HF94 1" / 1.4" Bolt On Horn Flare 90 x 40 Dispersion: |
|
||
|
|
View RCF website for more information for RCF HF94
